1. Overview of UV curing

UV is the English abbreviation of Ultra-Violet Ray . The industrial UV wavelength ranges from 200nm to 450 nm . The process of using UV to irradiate "UV irradiation hardenable materials " to harden it is called It is "UV Curing Process"---UV curing process.

A suitable UV process design basis:

It must be the intersection of the opinions of   the industry , UV equipment manufacturers and UV material suppliers. The customer side is mainly used to improve its production efficiency , increase the yield rate of its products , and make its products more competitive in the market. .

As a UV equipment manufacturer, we can only provide a UV light source compatible with the industry's production line according to the requirements of the industry . Of course, this UV light source must be able to correctly and stably harden the UV material selected by the industry.

Suppliers of UV materials should also design materials that meet the requirements of the industry according to the needs provided by the industry , and provide a condition to harden the material for UV equipment as our manufacturer's reference.

2. Main features

1.  Can reduce energy waste;

2.  There will be no volatilization of solvents , which will cause air pollution;

3.  The process time is shortened and the production efficiency is improved;

4.  The required equipment space is small , which can reduce the investment cost of the plant . ;

5.  Due to the shortened manufacturing process and easy quality control , the yield rate of the product can be greatly improved.

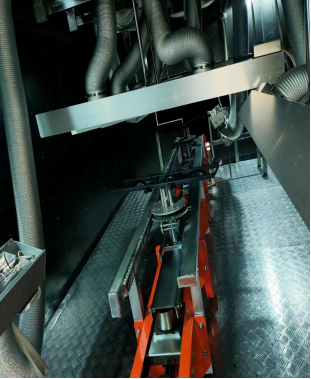

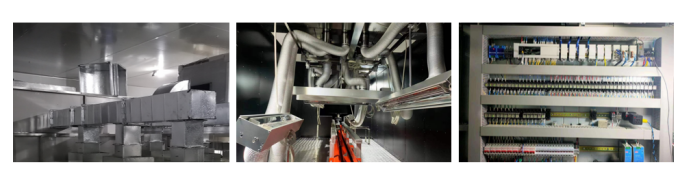

3. Introduction of UV chamber

 It generally consists of a light source part, a ventilation part, and a control system. The light source part is the key point. The ventilation adopts a forced fan and a fully intelligent control system.

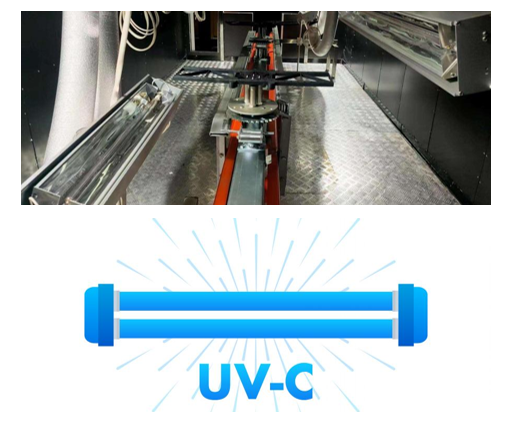

Light source part : UV lamp tube

(1)  Power supply voltage, usually the voltage of the UV lamp is 220V , the power supply can stabilize the voltage and protect the UV machine ;

(2)  The working voltage of the UV lamp, the working voltage is also called the tube pressure in the industry , and the tube pressure is the voltage at both ends of the lamp tube . The stability of the tube pressure determines the normal operation of the UV lamp and UV equipment ;

(3)  The working current of the UV lamp, commonly known as the tube current , the current level will directly affect the normal operation of the UV lamp ;

(4)  The starting current of the UV lamp, the starting current is the instantaneous high current when starting the UV lamp , because the instantaneous starting current of the ammeter of the UV curing machine is very large when starting , Jinke uses an ammeter above 30A to avoid damage to the UV lamp when starting damaged ;

(5)  UV lamp power density , density refers to the extremely high energy that can be concentrated on each square centimeter area ;

(6)  The tube diameter of the UV lamp. According to different uses, manufacturers will consider the diameter of the tube and the size of the tube when configuring the UV lamp and UV machine , because the size of the tube will affect the energy of the tube, making the overall configuration poor ;

(7)  UV lamp polar distance (luminous length) , simply speaking, it is the distance between the lamp tube electrode and the electrode , and the pole distance length of the UV light curing machine will affect the effective irradiation of the UV lamp tube;

(8)  Mainly infrared heat generation spectrum;

(9)  According to the curing surface and coating thickness, special power products are used;

(10)  Generally, according to the production speed of the production line and the thickness of the coating, the UV tube with the appropriate amount of radiation will be adjusted ;

(11)  In terms of UV radiation density, the company uses small tube long lamps and products with reflectors to ensure the effectiveness of UV radiation density for coating requirements, and make necessary adjustments at the same time;

(12)  Determine the parameters of the production line and the parameters of the UV room for the coating characteristics of the produced products ;

(13)  The light source UV lamp tube meets the requirements of 80-200W/cm or above for each intensity, so as to facilitate the curing speed of the curing material;

(14)  The multi-directional UV tube is used to cure the product, and the coating surface of the basic product is multi-directional so that there is no dead angle.

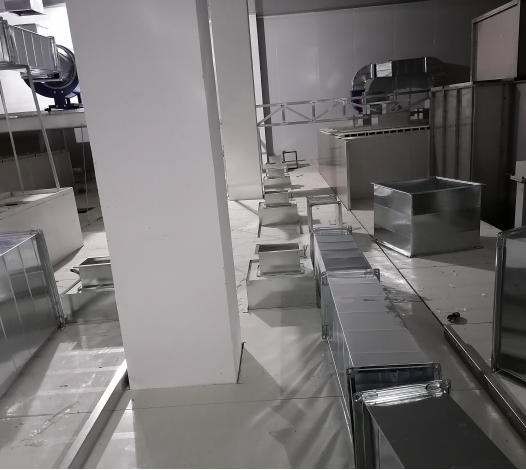

4. Ventilation part: forced air supply and exhaust

Our UV work unit basically adopts forced cold air

1.  Generally, a small wind cooling fan is installed on the top of the box for forced air supply and exhaust.

2.  Use a special air supply and exhaust pipe to force the air supply and exhaust of all the lamp tubes of the UV lamp group separately, which can effectively reduce the temperature of the product and the UV furnace, improve the life of the lamp tube, and is equipped with a temperature control to automatically control the constant temperature. Ensure product quality and production efficiency.

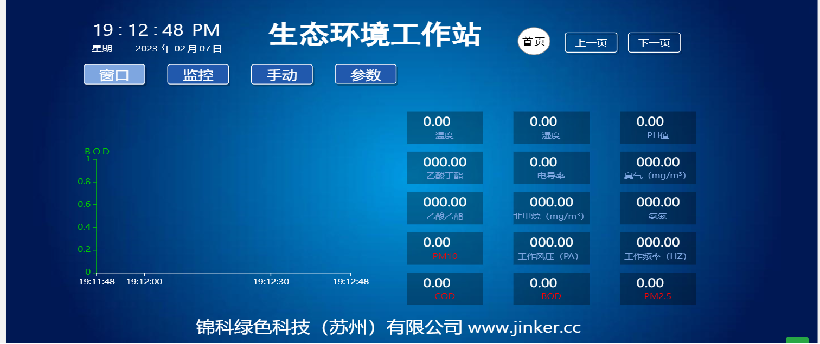

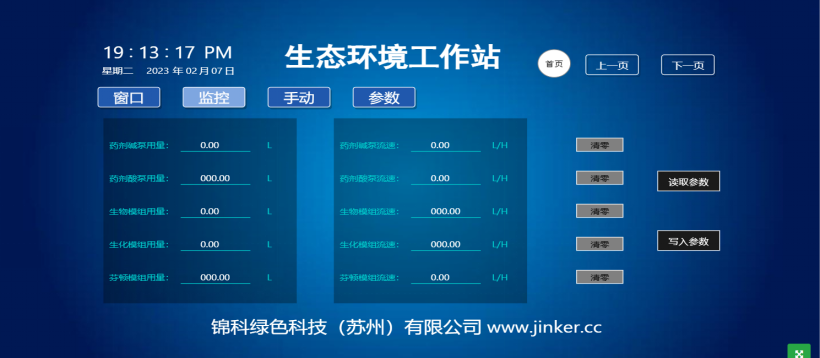

3.  The coating workstation of our company is an intelligent workstation, which generally installs various monitoring probes on the UV unit, senses the required parameters, connects to the Jinke control center, controls the rate, constant temperature, etc., and provides data parameter basis for intelligent management.

The coating workstation of our company is an intelligent workstation, which generally installs various monitoring probes on the UV unit, senses the required parameters, connects to the Jinke control center, controls the rate, constant temperature, etc., and provides data parameters for intelligent management to establish a complete ecological environment.
