1. Overview of Jinke Activated Carbon Box

When the factory workshop is engaged in production operations, the special coating workshop and the baking workshop will produce a large amount of irritating pollutants and other harmful gases. If the natural discharge is not treated, it will cause air pollution hazards to the natural ecology and the factory environment.

Therefore, it is necessary to collect the waste gas discharged from production operations, especially the painting line, and make a set of pollution prevention and control equipment to treat the waste gas to the air pollutant discharge standard that meets the environmental protection requirements before being discharged into the atmosphere, so as not to cause harm to the environment and personnel. harm.

The activated carbon coating exhaust gas treatment box designed and produced by our company is an important part (unit) of exhaust gas treatment in our spraying workstation. The activated carbon adsorption box has high adsorption efficiency, wide application range, convenient maintenance, and can simultaneously process a variety of mixed exhaust gases Etc.

2. Working principle

   The sprayed tail gas is powered by a fan , and the positive or negative pressure enters the activated carbon adsorption box . Through the filled activated carbon, the unbalanced and unsaturated molecular gravity or chemical strength exists on the solid surface of the carbon. When the gas contacts it , It can instantly attract macromolecular organic gas molecules , make them concentrate and keep them on the solid surface , and the pollutants are thus adsorbed. After the exhaust gas passes through the filter , it enters the activated carbon adsorption tower body , and the purified gas is discharged at high altitude to meet the standard.

3. Technical introduction - activated carbon (1)

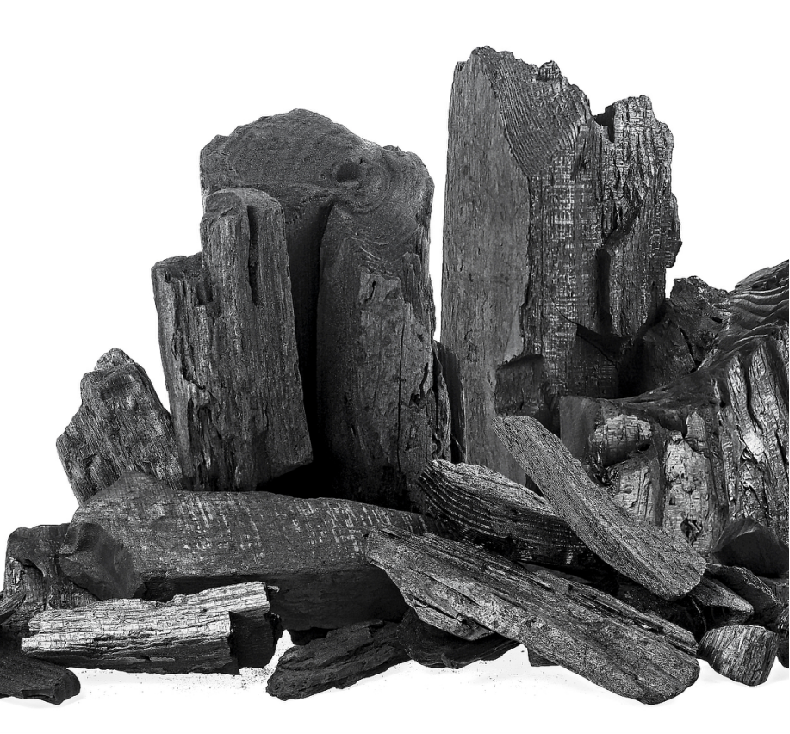

  Activated carbon: It is an amorphous and porous carbon. Generally, it also contains a small amount of oxygen, hydrogen, sulfur, nitrogen, chlorine and other substances. At the same time, it has a fine structure like graphite , but the grains are small and the layers are piled up irregularly. It has a large specific surface (600~1500 ㎡ / gram ) . It has a strong adsorption capacity and can instantly adsorb gas on its surface, so activated carbon has the ability to remove TVOC such as formaldehyde, benzene, and other harmful gases, disinfect and deodorize, and also has the ability to adsorb liquid or colloidal small particle solids.

4. Technical Introduction - Activated Carbon (2)

effect:

1 Therefore, it is often used in the adsorption, separation and purification of gases, the recovery of solvents, the decolorization agent of sugar liquid, oil, glycerin, drugs, the deodorant of drinking water or refrigerators , the filter agent of gas masks , and can be used as a catalyst. It can be used for waste gas treatment of electronic components production, battery ( battery ) production, pickling operation, laboratory exhaust, metallurgy, chemical industry, medicine, painting, food, brewing, etc. It is suitable for waste gas treatment such as painting and plastic spraying.

The adsorption of gas and liquid can be close to the quality of activated carbon itself.

3. It has selective adsorption, and non-polar substances are easier to adsorb than polar substances. In the same series of substances , the higher the boiling point, the easier it is to be adsorbed . The higher the pressure, the lower the temperature , the higher the concentration , the greater the adsorption capacity . On the contrary , decompression and temperature rise are beneficial to the desorption of the gas, which can be recycled.

Parameters :

Its parameters mainly include iodine value, specific surface, gray scale, particle size, adsorption rate, etc.

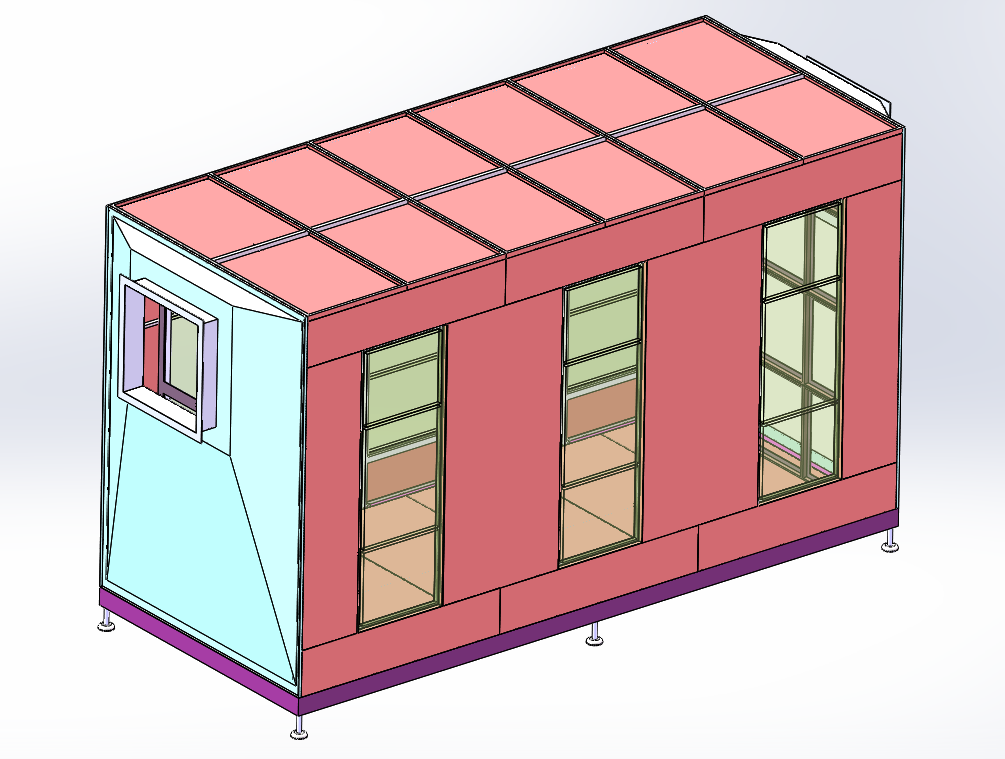

Five, Jinke activated carbon box

  Jinke activated carbon box can be made of stainless steel, carbon steel, PPB and other materials

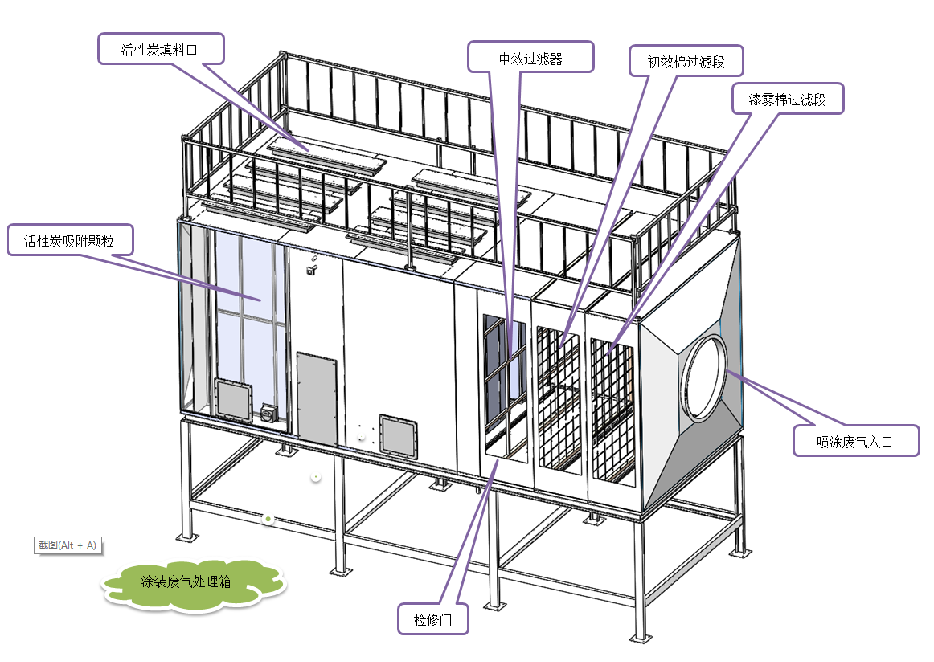

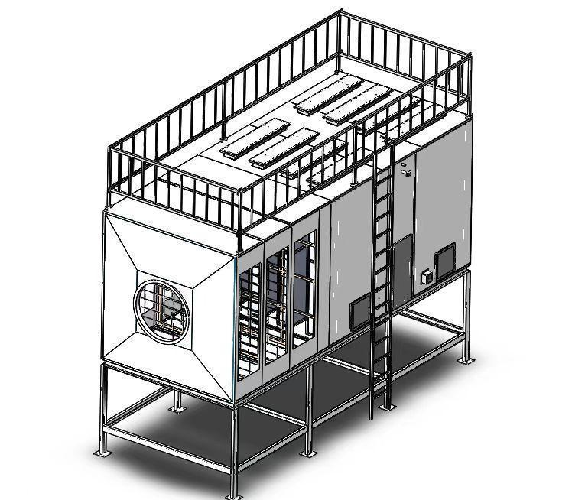

6. Overall structure of Jinke carbon box

The hardware part can be customized according to the customer's production requirements, and the appropriate material can be selected according to the nature of the exhaust gas.

The thickness of the main structure must be based on each model and processing capacity, and it should be reinforced enough to bear the load required for the structure and operation

And provide the Internet of Things operation cloud platform.

7. The main advantages of Jinke activated carbon adsorption box products

1.  High adsorption efficiency , obvious effect , wide application

2.  High adsorption efficiency , obvious effect , wide application

3.  Strong adaptability, fully sealed indoor and outdoor use, wide application range

4.  Safety and environmental protection, automatic control operation, simple and safe operation

5.  Easy maintenance , no technical requirements

6.  It can process multiple mixed exhaust gases at the same time, and the purification efficiency is ≥ 98

7.  Focus on VOC gas treatment

8. Application range of Jinke activated carbon box :

Jinke activated carbon adsorption box is used in conjunction with Jinke spray booth, drying room and dual-purpose room for spraying and drying to treat the generated organic waste gas. It is an indispensable and important unit for waste gas treatment in Jinke painting workstation.

 Jinke activated carbon box is especially suitable for the working environment with low concentration and large air volume or high concentration intermittent emission of exhaust gas. The main application fields include : electronic component production, battery ( battery ) production, pickling workshop, laboratory exhaust, electroplating plant, metallurgy , chemical plant, pharmaceutical production plant, painting workshop, food and brewing, furniture production.
